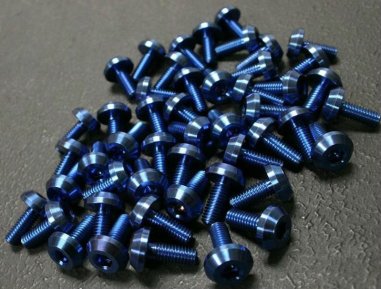

Hardware Titan
Dignity
High mechanical strength, corrosion resistance (in contact with atmospheric, soil moisture, aggressive media), heat resistance (t°melting. Ti = 1668°C). Resistance to extreme temperatures, vibration, biological inertness (not rejected by living tissues) namagnichennosti. Titanium fasteners are light weight (density of Ti is 4.5 g/cm3), which combined with the other qualities make them indispensable in the construction of all types of transport.
Disadvantages
The main disadvantage of such hardware is a high cost, since titanium in pure form is difficult to obtain. Hot it reacts easily with atmospheric gases, in addition, poorly drilled, cut and milled because of its hardness.
Application
Lightweight, durable hardware made of titanium structural open new horizons in robotics, and medicine. electrical engineering (they have a great conductivity as compared with steel alloys). Stainless titanium fittings essential to nautical navigation (among other things it is non-magnetic), offshore oil platforms, refineries, which has a value of resistance to aggressive environments, heat resistance, insensitivity to temperature extremes. In the motor industry and robotics Titan significantly reduces the overall weight of the mechanisms. Titanium bolts have a yield strength significantly higher than the grade of bolts is 8.8, titanium is much lighter than steel, it is unusual fatigue. Titanium screws, staples, spokes, thanks to biological inertness, are in dire needs of contemporary trauma. Titanium screws, bolts, nuts, washers used in mining, construction, shipbuilding, automotive, aviation, petrochemical, defense, medicine, tourism and sports and many other industries.
| Percentage composition | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mark | Al | Ti | V | Zr | Sn | Mo | Mn | Fe | Si | Cr | O | C | N | Others | |
| VT1−00 | basis | 0,15 | 0,08 | 0,1 | 0,05 | 0,04 | 0,1 | ||||||||
| VT1−2 | basis | 1,5 | 0,15 | 0,3 | 0,1 | 0,15 | 0,3 | ||||||||
| VT1−0 | basis | 0,3 | 0,1 | 0,2 | 0,1 | 0 | 0,3 | ||||||||
| VT3−1 | 5,5−7,0 | basis | 0,5 | 2.0 to 3.0 | 0,2−0,7 | 0,15−0,40 | 0,8−2,0 | 0,15 | 0,1 | 0,05 | 0,3 | ||||
| OT4−0 | 0,4−1,4 | basis | 0,3 | Of 0.5−1.3 | 0,3 | 0,12 | 0,15 | 0,1 | 0,05 | 0,3 | |||||
| OT4 | 3.5 to 5.0 | basis | 0,3 | 0,8−2,0 | 0,3 | 0,12 | 0,15 | 0,1 | 0,05 | 0,3 | |||||
| OT4−1 | 1,5−2,5 | basis | 0,3 | 0,7−2,0 | 0,3 | 0,12 | 0,15 | 0,1 | 0,05 | 0,3 | |||||
| VT5−1 | 4.3−6,0 | basis | 1 | 0,3 | 2.0 to 3.0 | 0,3 | 0,12 | 0,15 | 0,1 | 0,05 | 0,3 | ||||
| VT5 | 4,5−6,2 | basis | 1,2 | 0,3 | 0,8 | 0,3 | 0,12 | 0,2 | 0,1 | 0,05 | 0,3 | ||||
| VT6 | 5,3−6,8 | basis | 3,5−5,3 | 0,3 | 0,6 | 0,1 | 0,2 | 0,1 | 0,05 | 0,3 | |||||
| VT8 | 5,8−7,0 | basis | 0,5 | 2,8−3,8 | 0,3 | 0,20−0,40 | 0,15 | 0,1 | 0,05 | 0,3 | |||||
| Vt6s | 5,3−6,5 | basis | 3,5−4,5 | 0,3 | 0,25 | 0,15 | 0,15 | 0,1 | 0,04 | 0,3 | |||||
| VT9 | 5,8−7,0 | basis | 1,0−2,0 | 2,8−3,8 | 0,25 | 0,20−0,35 | 0,15 | 0,1 | 0,05 | 0,3 | |||||
| ВТ16 | basis | ||||||||||||||
| VT14 | 3,5−6,3 | basis | 0,9−1,9 | 0 | 2,5−3,8 | 0,3 | 0,2 | 0,2 | 0,1 | 0,1 | 0,3 | ||||
| VT22 | 4,4−5,7 | basis | 4,0−5,5 | 0,3 | 4,0−5,5 | 0,5−1,5 | 0,15 | 0,5−1,5 | 0,18 | 0,1 | 0,05 | 0,3 | |||
| VT20 | 5,5−7,0 | basis | 0,8−2,5 | 1,5−2,5 | 0,5−2,0 | 0,25 | 0,15 | 0,15 | 0,1 | 0,05 | 0,3 | ||||
| PT-1M | basis | ||||||||||||||
| PT-7M | 1,8−2,5 | basis | 2.0 to 3.0 | 0,25 | 0,12 | 0,15 | 0,1 | 0,04 | 0,3 | ||||||
| PT-3V | 3,5−5,0 | basis | 1,2−2,5 | 0,3 | 0,25 | 0,12 | 0,15 | 0,1 | 0,04 | 0,3 | |||||
| 2B | 1,5−2,5 | basis | 1,0−2,0 | 0,2 | 0,1 | 0,12 | 0,7 | 0,04 | 0,3 | ||||||
| 5B | 4,7−6,3 | basis | 1,0−1,9 | 0,1 | 0,7−2,0 | 0,25 | 0,12 | 0,13 | 0,06−0,14 | 0,04 | 0,3 | ||||
| 3M | 0,2−0,7 | basis | 3,5−5,0 | 0,3 | 0,2 | 0,1 | 0,15 | 0,1 | 0,04 | 0,3 | |||||
| 14 | 3,5−5,6 | basis | 0,5−2,5 | 0,3 | 0,25 | 0,12 | 0,15 | 0,1 | 0,04 | 0,3 | |||||
| AT3 | 2,0−3,5 | basis | 0,20−0,40 | 0,2−0,5 | 0,15 | 0,1 | 0,05 | 0,3 | |||||||
| 40 | 1,5−3,5 | basis | 0,5−2,5 | 0,3 | 0,25 | 0,12 | 0,14 | 0,07 | 0,04 | 0,3 | |||||
| SP 17 | 5,1 | basis | 1,4 | 5,6 | |||||||||||
Delivery
Titanium standard screw has the following dimensions: bolt — M4-М22хДл.; nut — M4-M22; washer — M4-M22. According to custom drawings are made: stamping and casting; hot forging, titanium alloys, superalloys. Is carried out: milling, turning, water cutting; laser cutting; special heat treatment; different types of final processing. Under the order is carried out: heat treatment, special finishing, chemical and machining-milling, drilling, reaming, threading, sawing, turning, drilling, boring, double disc grinding and milling duplex. It features cutting concerns: the visible abrasive cutting, cold, heat, powder and plasma, surface air-arc cutting, laser and waterjet cutting. Heat treatment for forgings include annealing, normalizing, annealing, tempering, surface sealing, etc. the Quality of the finished product is ensured absolute compliance with all technological norms of production.
Buy at best price
The choice of components for the equipment — not such a simple task, it is necessary to take into account a number of factors. The company «AVEK global» there is a wide range of titanium hardware under the order. Our experts are always ready to help You in selecting the required products, which determines the efficiency and reliability of future equipment. Here You can purchase products on the most favorable terms. Our experts will not only help You to determine the optimal parameters of products, but also offer the best price. We also guarantee high quality products and timely delivery.
