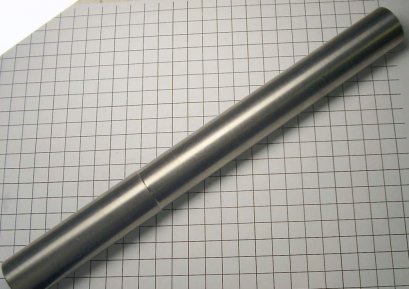

Molybdenum rod
Dignity
Molybdenum rods are different mechanical strength, refractoriness, corrosion resistance. In an aggressive liquid or gaseous media, they are not destroyed, have a high modulus of elasticity, low coefficient of thermal expansion. These advantages allow the use of molybdenum rods in the most demanding process conditions. Compared with tungsten — molybdenum rods easier almost doubled, so have a large specific strength (at t° to 1370°C).
| Physical quality | |
|---|---|
| The temperature at which the obtained data the features of t°C | 20°C |
| The linear thermal expansion coefficient α [1/°C] | Of 4.9x10-6 |
| Density [g/cm3] | 10,2 |
| The melting temperature t°C | 2620°C |
| Specific heat at 20 °C [kJ/(kg·deg)] | 0,256 |
| The thermal conductivity K [W/(m·K)] | 142 |
| Electrical resistivity R, Mhmm2/m | 0,054 |
Chemical properties
Mo is stable in cold alkali, but hot slowly destroyed. It dissolves hydrochloric, sulfuric acids at 80 °C. Nitric acid, Aqua Regia dissolve it only at 100 °C. the Impurities of carbon, oxygen, silicon, aluminum, nitrogen, iron, sulphur, calcium, phosphorus significantly change its properties. The bulk of these impurities increases the fragility. Most harmful of all impurities is considered to be oxygen. If it is contained in a volume 0,0008−0,004%, the low-melting oxides can lead to a sharp increase in brittleness of the material, hindering plastic deformation, especially in the simultaneous presence of carbon with nitrogen. With increasing percentage of oxygen than 0.015%, the processing pressure because of the fragility becomes impossible.
Disadvantages
Molybdenum refers to rare earth elements, in its purest form is quite difficult to identify, it is refractory and hard to work — all this affects the high cost of the final products.
Production of molybdenum rods
| Mark Mo | Surface condition | Diameter, mm | Length, mm | ||
|---|---|---|---|---|---|
| Limit deviation | Nominal | More | No more | ||
| MCH | Not moulded | ± 0,5 | 16. | 350 | |
| ± 1,0 | 16 — 20 every 1 | 350 | |||
| ± 1,5 | 20 — 28 every 2 | 200 | |||
| ± 2,0 | 28 — 40 every 2 | 150 | |||
| Turned | ± 0,5 | 16 | 100 | 500 | |
| ± 0,8 | 16 — 20 every 1 | ||||
| ± 0,8 | 20 — 36 every 2 | ||||
| MCIT | Not moulded | ± 0,5 | 16 | 250 | |
| ± 1,0 | 16 — 20 every 1 | 250 | |||
| ± 1,5 | 20 — 28 every 2 | 200 | |||
| ± 2,0 | .28 — 40 every 2 | ||||
| ± 2,5 | 40 — 6 0 every 2 | 150 | |||
| ± 2,5 | .60 — 125 every 5 | 100 | |||
| Turned | ± 0,5 | 16 | 100 | 500 | |
| ± 0,8 | 16 — 20 every 1 20 — 36 every 2 36 — 60 every 2 | ||||
| ± 1,0 | .60 — 120 through each 5 | ||||
All bars must be straight, and the deflection must not exceed the length of the 1%. Color bars — black to dark gray. The thickness of wire brand of MK up to 11 mm, MPH, MCH more than 15 mm allowed deviation from the nominal length, 10% of the length of bars. The ends should be cut straight and allowed only minor chips. Wrought iron rods on its surface may have traces of oxidation or processing that does not contradict the specifications. The surface must not have delamination, cracks, and large burrs, the allowable presence of slight burrs and traces of edits. Rods brand MPR according to the technical requirements, permitted a single large burrs.
Use
Molybdenum rod is designed for the manufacture of products, operating in conditions of high mechanical loads and temperatures. It is indispensable for heat treatment of steel alloys pressure (matrix mandrel piercing mills, presstampa). It is made from moulds and cores for equipment intended for casting copper alloys, zinc, aluminum under pressure. Rod molybdenum is used for the welding of creep resisting and low alloy steels. It is used in the glass industry in the form of stirrers and melting electrodes for glass melting.
Buy at best price
In stock LLC «AVEK global» — the widest range of products from rare and refractory metals. We offer molybdenum rods for any of the parameters on the optimal prices. Our specialists are ready to answer any questions and to help in the selection of necessary materials, upon request, will provide all the necessary information about the product, cost and delivery time. Rates depend on scope of delivery and additional conditions. For wholesale orders discounts. Buying products of the company «AVEK global», You will find a worthy partner.
