Zirconium brand
General characteristics

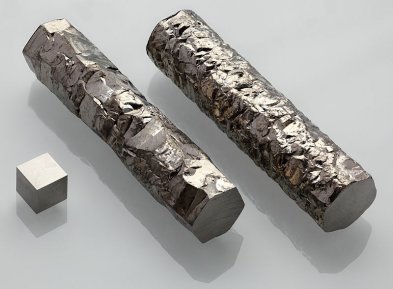

Zirconium is a steel-gray colored metal with a yellowish tinge. It is produced by the melting zirconium waste and ore concentrate. It is different malleability and ductility nearly identical to gold. It is corrosion resistant, heat resistant, paramagnetic metal. It is resistant to seawater, alkalis, ammonia, acids, retards radiation, does not lose its properties or in the conditions of cryogenic, or high temperatures. Zirconium is usually used in alloy with other metals, which gives it its extraordinary quality and improves manufacturability.
| Physical qualities Zr | |
|---|---|
| Atomic (molar) mass, g/mol | 91,224 |
| The degree of oxidation | 4, 3, 2, 1, 0 |
| Density [g/cm3] | 6,5 |
| The melting temperature t°C | 1855°C |
| The heat of fusion kJ/mol | 19,2 |
| The thermal conductivity K [W/(m·K)] | 22,7 |
| Heat of evaporation kJ/mol | 567 |
| Chemical composition of zirconium alloys in percent. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mark | or | Zr+Hf | Be | Nb | Hf | Ni | Cr | Ti | Al | O2 | Pb |
| KTTS 110 | E110 | 99.5 | 0,003 | 0,9−1,1 | 0,01 | 0,02 | 0,02 | 0.007 | 0,008 | 0,10 | 0,005 |
| КТЦ100 | Э100 | 99,7 | 0.0005 | - | 0,01 | 0.01 | 0.005 | 0.007 | 0.005 | 0.14 | 0,005 |
| KTTS 125 | Э125 | 99.5 | 0,003 | 2.4−2.7 | 0,01 | 0,02 | 0,02 | 0.007 | 0,008 | 0,06−0,1 | 0,005 |
| The chemical composition of their foreign counterparts Zirconia | ||||||||
|---|---|---|---|---|---|---|---|---|
| UNS | Mark | Zr+Hf | H | Fe+Cr | Hf | O | C | N |
| R60700 | Zr 700 | 99.2 | 0.005 | 0.2 | 4.5 | 0.1 | 0.05 | 0.025 |
| R60705 | Zr 705 | 95.5 | 0.005 | 0.2 | 4.5 | 0.18 | 0.05 | 0.025 |
| R60702 | Zr 702 | 99.2 | 0.005 | 0.2 | 4.5 | 0.16 | 0.05 | 0.025 |
Use. Energy and metallurgy
Dioxide ZrO2 the minerals baddeleyite, zircon are in the manufacture of refractory bricks for metallurgical furnaces, refractory tubes, and crucibles for melting metals. Ukraine has developed the technology to produce large range of pipes made of zirconium alloy KTC-110. This brand of pipe can be used in heat exchanger shells in the nuclear cauldrons in the composition of components of nuclear power plants.
Medicine
Cardiology center of Nizhny Novgorod conducted the study. Thin zirconium plate in the x-ray Department delayed radiation much better than several layers of protective lead aprons. In the result of the study it was proved that zirconium actively absorbs, neutralizes harmful radiation. Regular wearing of zirconium products is beneficial for health. In chronic diseases the healing often begins after a period of exacerbation. Therefore, when the exacerbation is recommended to remove the product, and after a while to wear again when the discomfort will pass. Recovery occurs in a few cycles.
Jewelry
Jewelers have long attracted the unique properties of this metal, because the anodized zirconium acquires any shade, providing limitless possibilities for the realization of artistic ideas. If you wish to wear something original and unusual, you need to pay attention to zirconium jewelry. They are very elegant, well made and thought out, so very highly valued on the world market.
Other branches
Due to the high strength of Zirconia to acids, steam, aggressive industrial environments, as well as biological inertness, zirconium tubes used in chemical, papermaking, food industry, production of injection needles, steam condensers.
Zirconium bars
They can be cast, cold — and hot-deformed (cold-rolled and hot-pressed), forged (by cold forging method) Ø 4,5 — 81 mm, a length of over 7400 mm Rods made from zirconium alloys with contents consisting of niobium 1% — 2.5% and also corrosion-resistant alloy grade Э635. Bars at the precision of production are divided into two types: high and normal precision. Bars are used as structural material in the manufacture of fuel assemblies of nuclear reactors and fuel elements. Of the rods are made of various elements of fuel Assembly and plug the fuel elements.
Iodine bars
These rods are a special product of the most pure zirconium. Get their way godenovo refining. Of them are made electrodes, vacuum device, the sink.
Cold-rolled sheets
Zirconium sheets are produced by cold rolling of zirconium alloys doped with niobium up to 2.5%. They are annealed in vacuum, and their surface etched. Zirconium sheets have high corrosion resistance. They are used in the form of material for the manufacture of lids fuel assemblies in nuclear reactors. Also they are intended for the production of fragments of chemical reactors and ship hulls.
Wire
Produced by cold rolling Ø 0,7 — 4,0 mm of zirconium alloys. In its composition contains from 1% to 2.5% of niobium is another popular material for the production of channels and fuel elements of nuclear reactors, where it is used for welding tubular parts.
Zirconium cathodes
They contain, as a rule, the different ratio of components. They are used for application to the surface of wear-resistant coatings as nitrides, oxynitrides, oxides and other zirconium compounds. Such coatings are applied to the edges of cutting tools made of hard alloys and high speed steels, turbine blades, on the elements of friction pairs (bushes, trees), which significantly increases their lifetime. zirconium cathodes are also used in dentistry for the application of zirconium coating on the crowns.
Buy at best price
In stock LLC «AVEK global» a huge range of rolled zirconium and zirconium alloys:
— the band;
list;
— rod Ø up to 150 mm;
— wire Ø 0,7 — 4 mm;
— cathodes for sputtering;
target.
— as well as other products according to customer drawings:
Strict compliance with technological production standards ensures a high quality finished product. The timing of orders is minimal. To any questions, experienced managers provide comprehensive information. Carrying out wholesale orders, you can count on company-provided flexible system of discounts.
